SKU:75845869

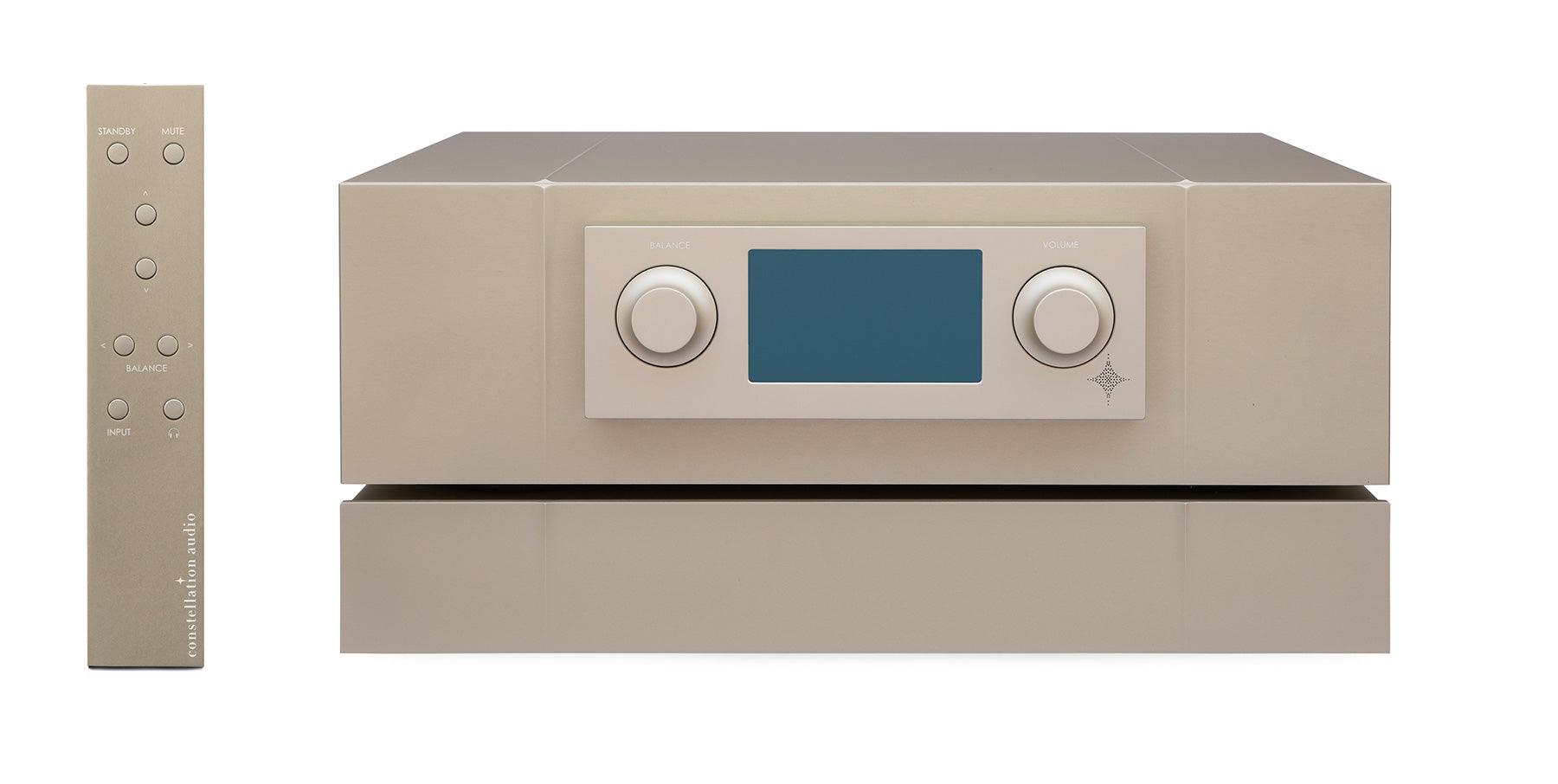

The Revelation 2 Preamplifier distills the designs of our elite preamplifiers into a component practical for audiophiles who don’t require as many inputs.
Importantly, we’ve added C- SMPS, for cleaner, more consistent power than transformer-based power supplies can deliver. As in all of our preamplifiers, the Revelation 2 Preamplifier is based on our exclusive Line Stage Gain Module, which produces truly extraordinary depth and musicality.
Inputs | 3 XLR Stereo |
3 RCA Stereo | |
1 USB (for control) | |
Outputs | |
2 XLR stereo | |
2 RCA stereo | |
12-volt trigger | |
THD+N | <0.001%, 20 Hz – 20 kHz @ 2V out |
<0.1%, 20 Hz – 20 kHz @ 10V out | |
S/N ratio | >-105 dB, A-weighted |
Input impedance (balanced) | 20K Ω |
Input impedance (single-ended) | 10K Ω |
Output Impedance | < 50 Ω |
Volume control resolution | 0.5 dB from 0dB to -90 dBFS |
Weight (preamp + power supply unit) | 35 lbs./16 kg |
Weight (power supply only) | 11 lbs./5 kg |
Pre Dimensions | 17″/432mm X 15″/381mm X 5.5″/140mm (WDH) |
Dimensions (power supply unit) | 17″/432mm X 14.5″/368mm X 2.75″/70mm (WDH) |
