SKU:76088501

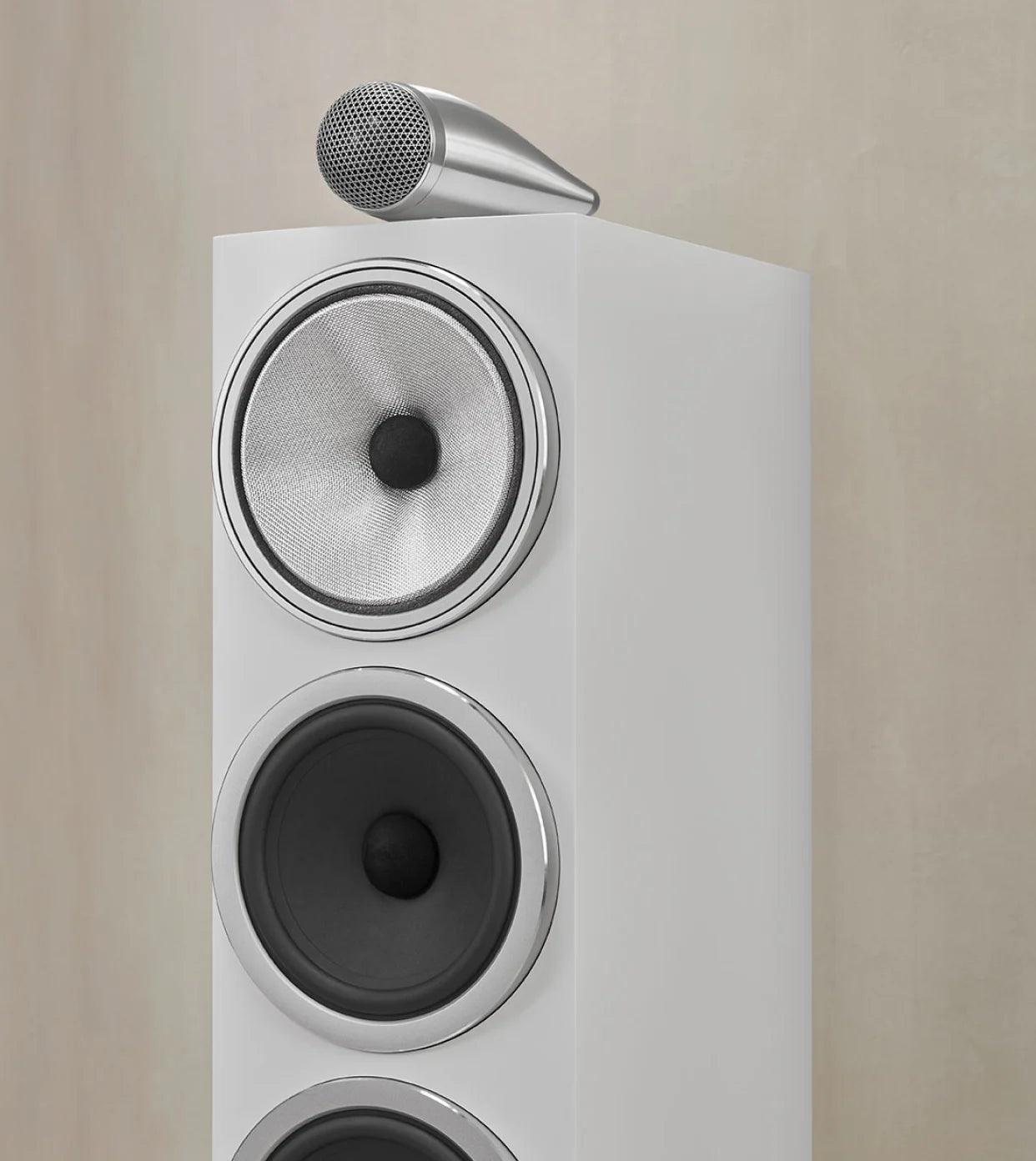

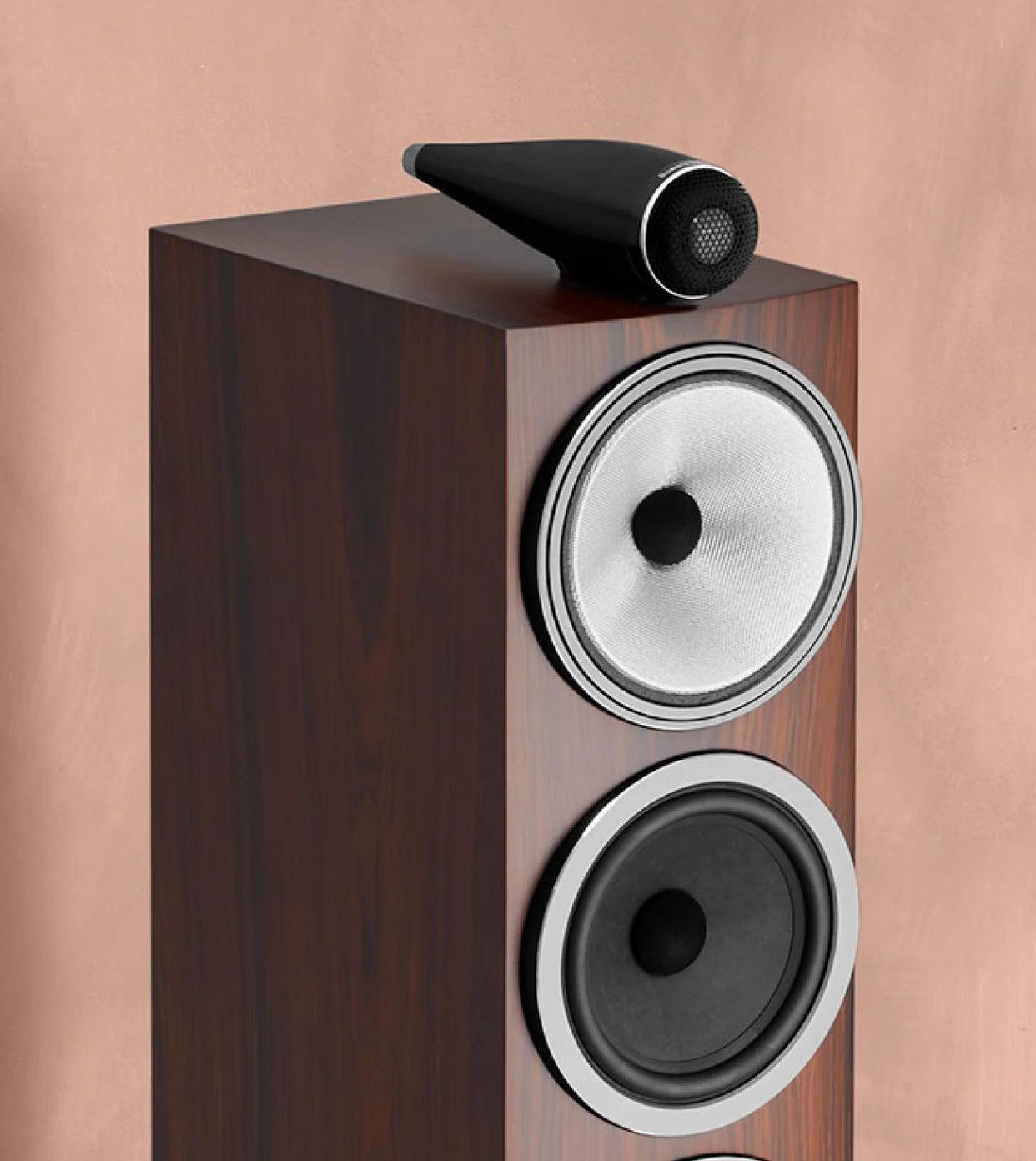

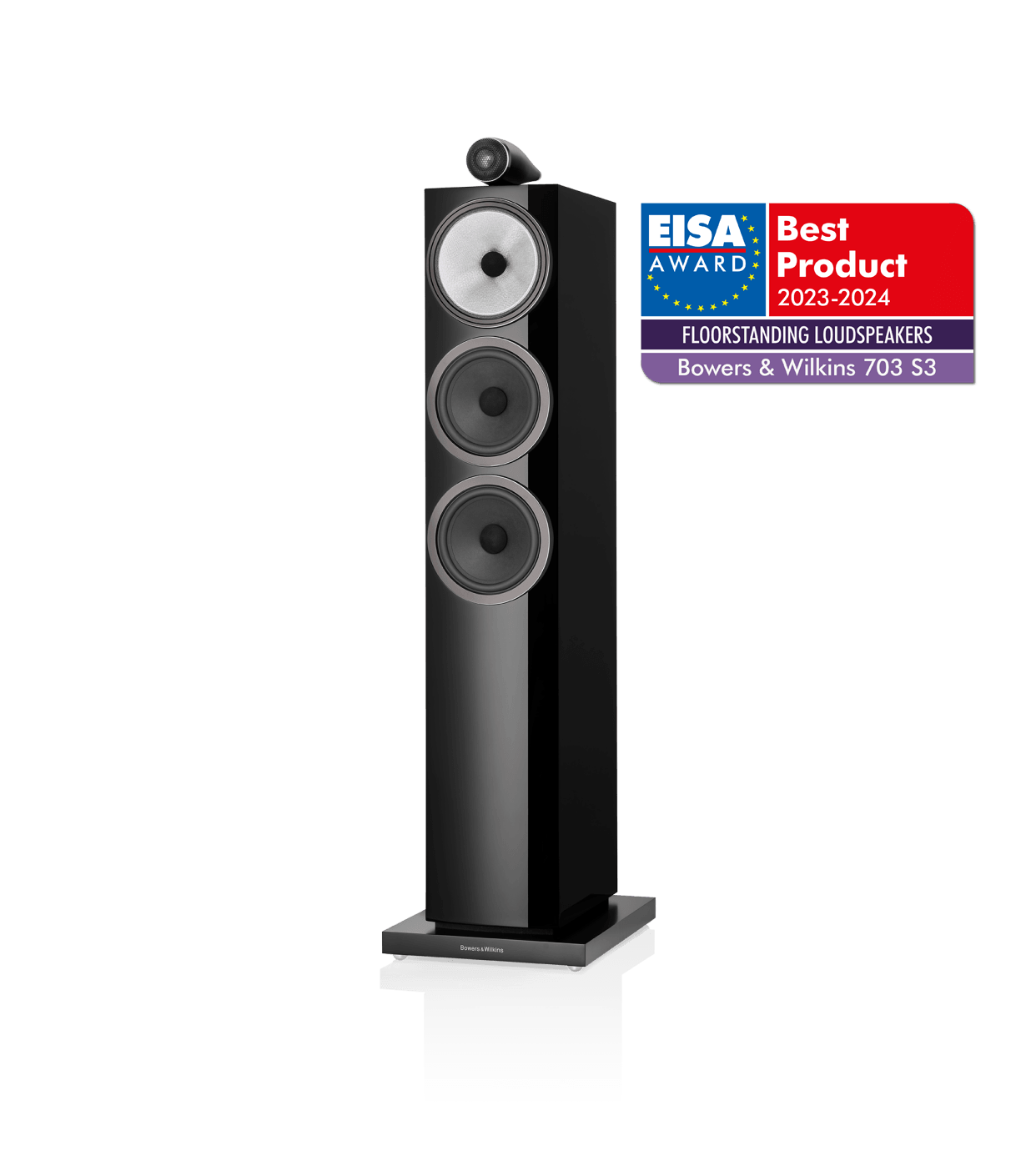

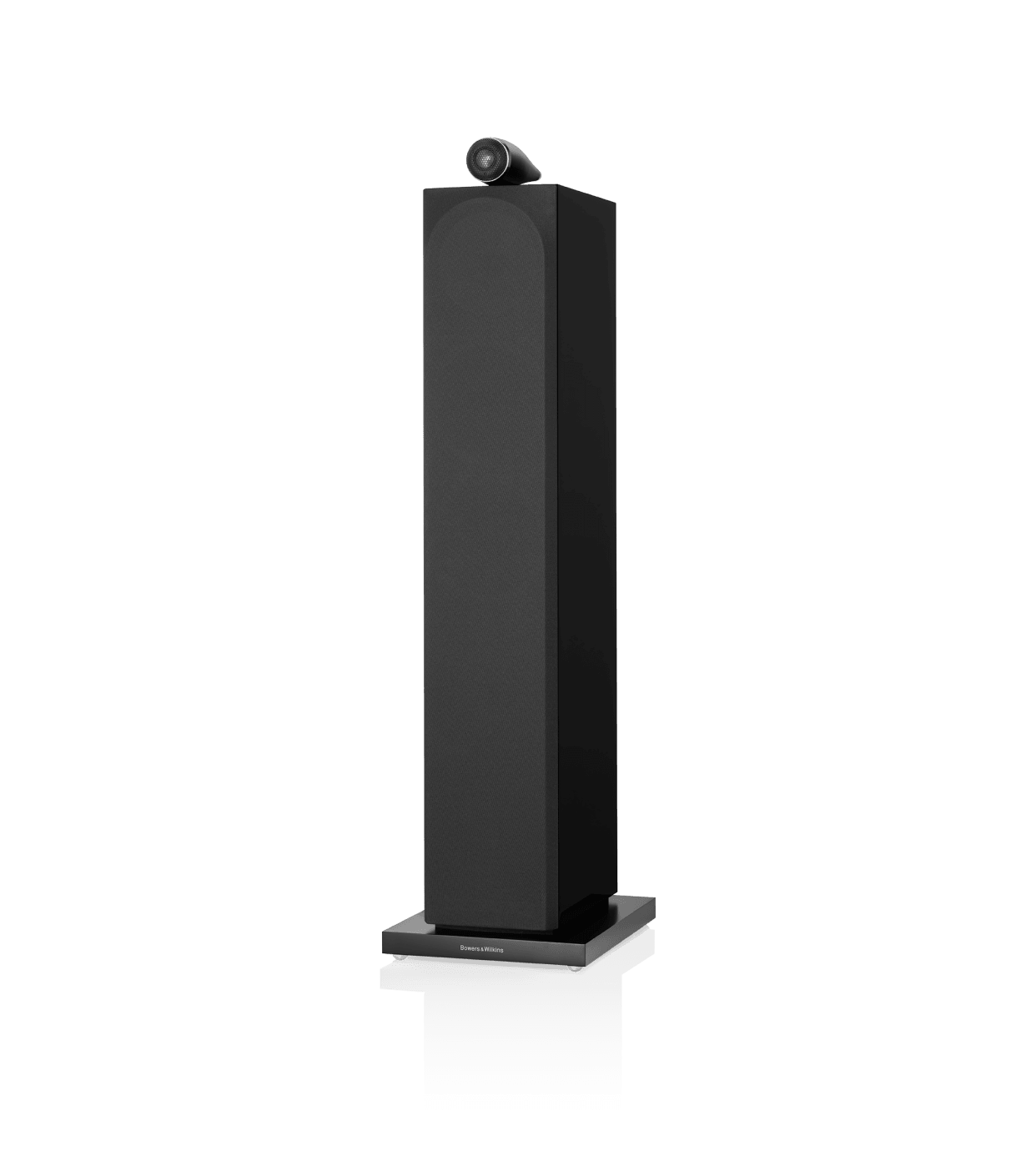

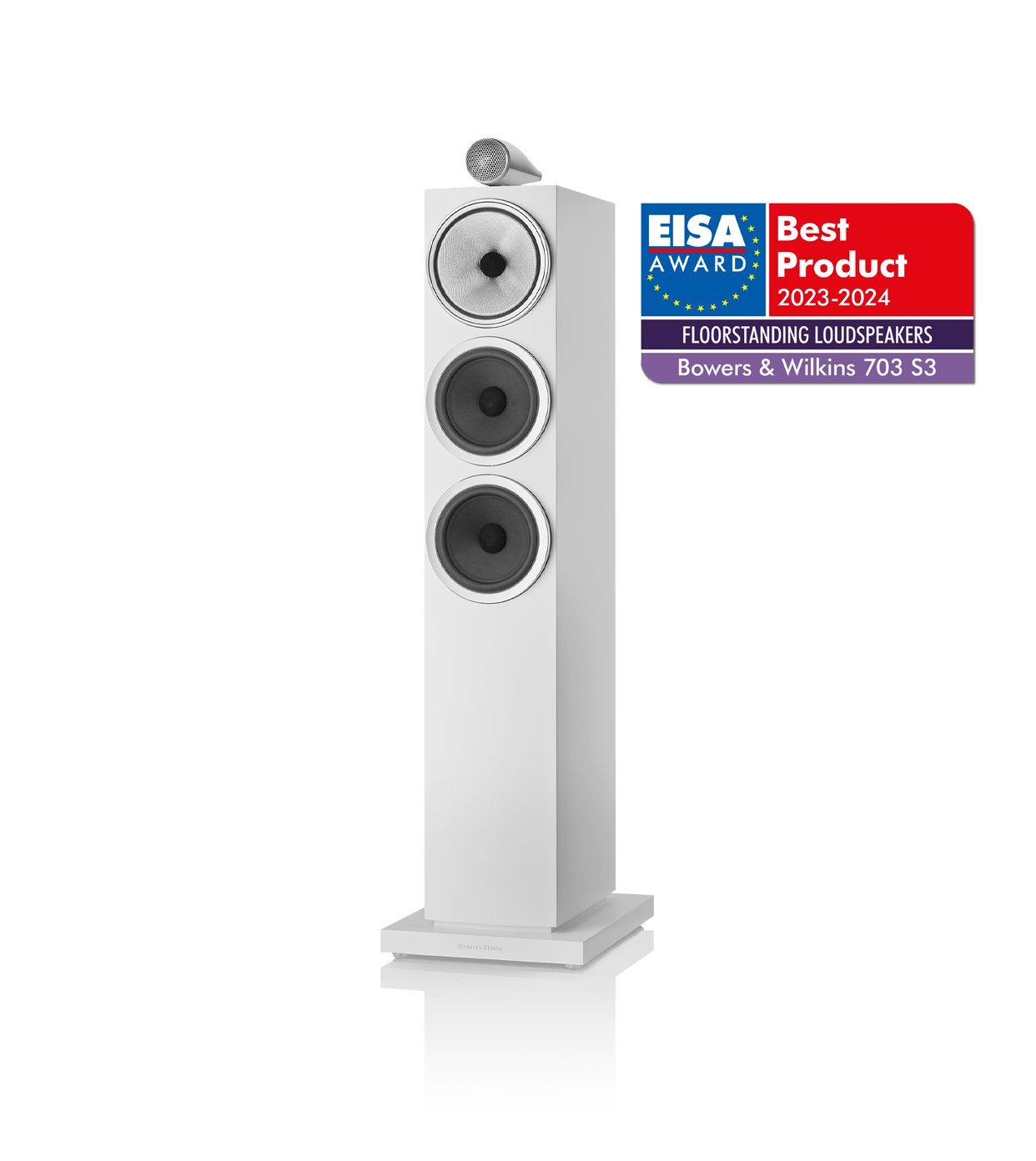

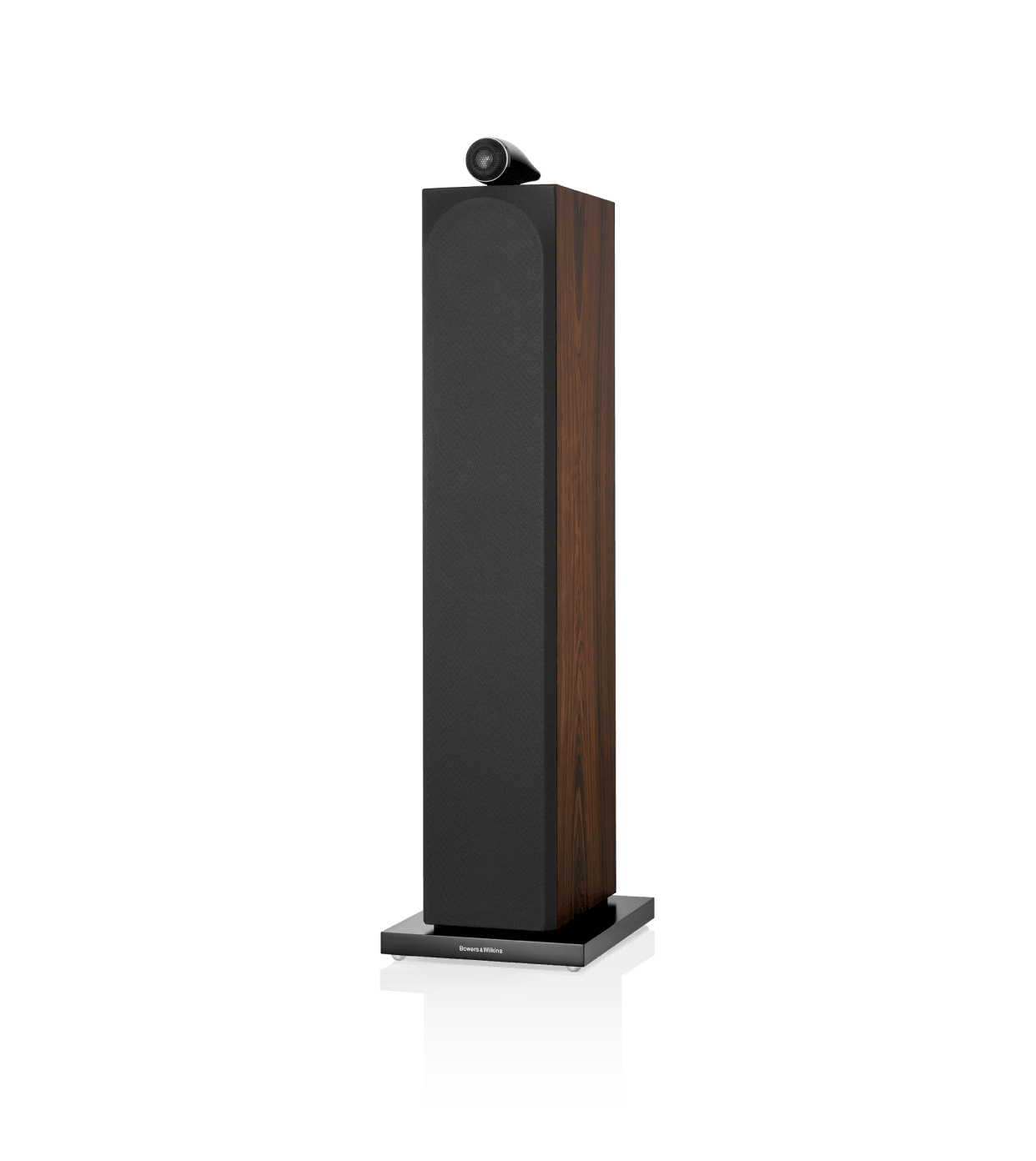

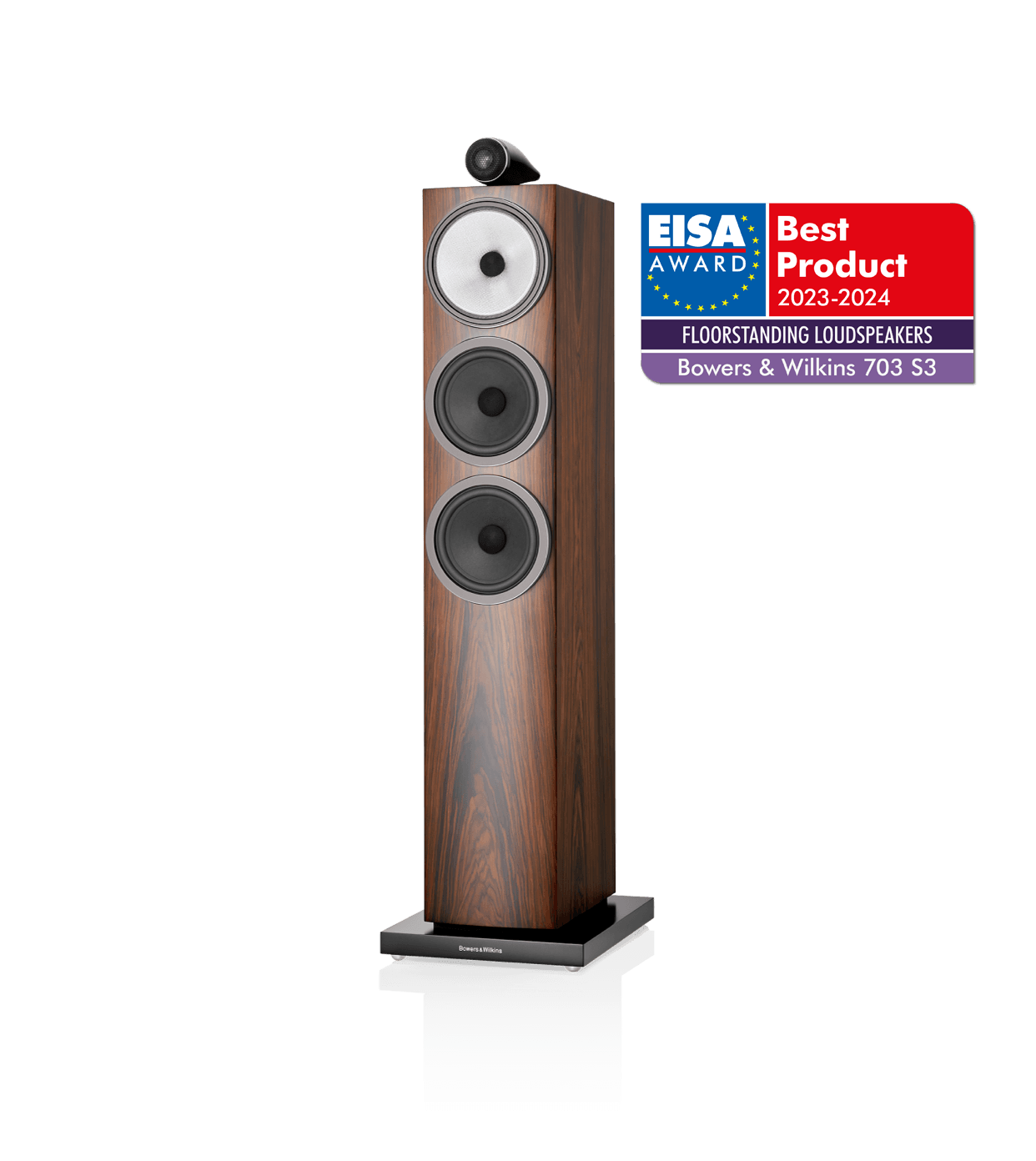

The new 703 S3 now features our iconic Tweeter-on-Top configuration for the first time, alongside a decoupled FST™ Continuum cone midrange driver – enhanced by the addition of our revolutionary new Biomimetic Suspension – and twin Aerofoil Profile bass drivers.
The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminum to resist resonance better.
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension, and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.
Developed using advanced computer modeling techniques, the Aerofoil™ Profile bass cone has a variable thickness, providing stiffness and rigidity where it’s needed most—the result: deep and dynamic bass.
Specifications
Size & weight
Dimensions-
Height: 1010mm (39.8 in) cabinet only
1117mm (44.0 in) including tweeter and plinth
Width: 192mm (7.6 in) cabinet only
290mm (11.4 in) including plinth
Depth: 316mm (12.4 in) cabinet only
353mm (13.9 in) including grille and terminals
372mm (14.6 in) including plinth
Net weight-
28.81kg (63.5 lb)
Technical details
Technicals features-
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum cone FST midrange
Decoupled midrange
Aerofoil Profile bass cones
Flowport
Max recommended cable impedance-
0.1Ω
Description-
3-way vented-box system
Drive units-
1x 25mm (1 in) Decoupled Carbon Dome high-frequency
1x 150mm (6 in) Continuum cone FST midrange
2x 165mm (6.5 in) Aerofoil Profile bass
Frequency range-
30Hz to 33kHz
Frequency response-
46Hz-28kHz ±3dB
Sensitivity-
90dB spl (2.83Vrms, 1m)
Harmonic distortion-
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 90Hz-22kHz
<0.5% 120Hz-20kHz
Nominal impedance-
8Ω (minimum 3.1)
Recommended amplifier power-
30W-200W into 8Ω on an unclipped program
