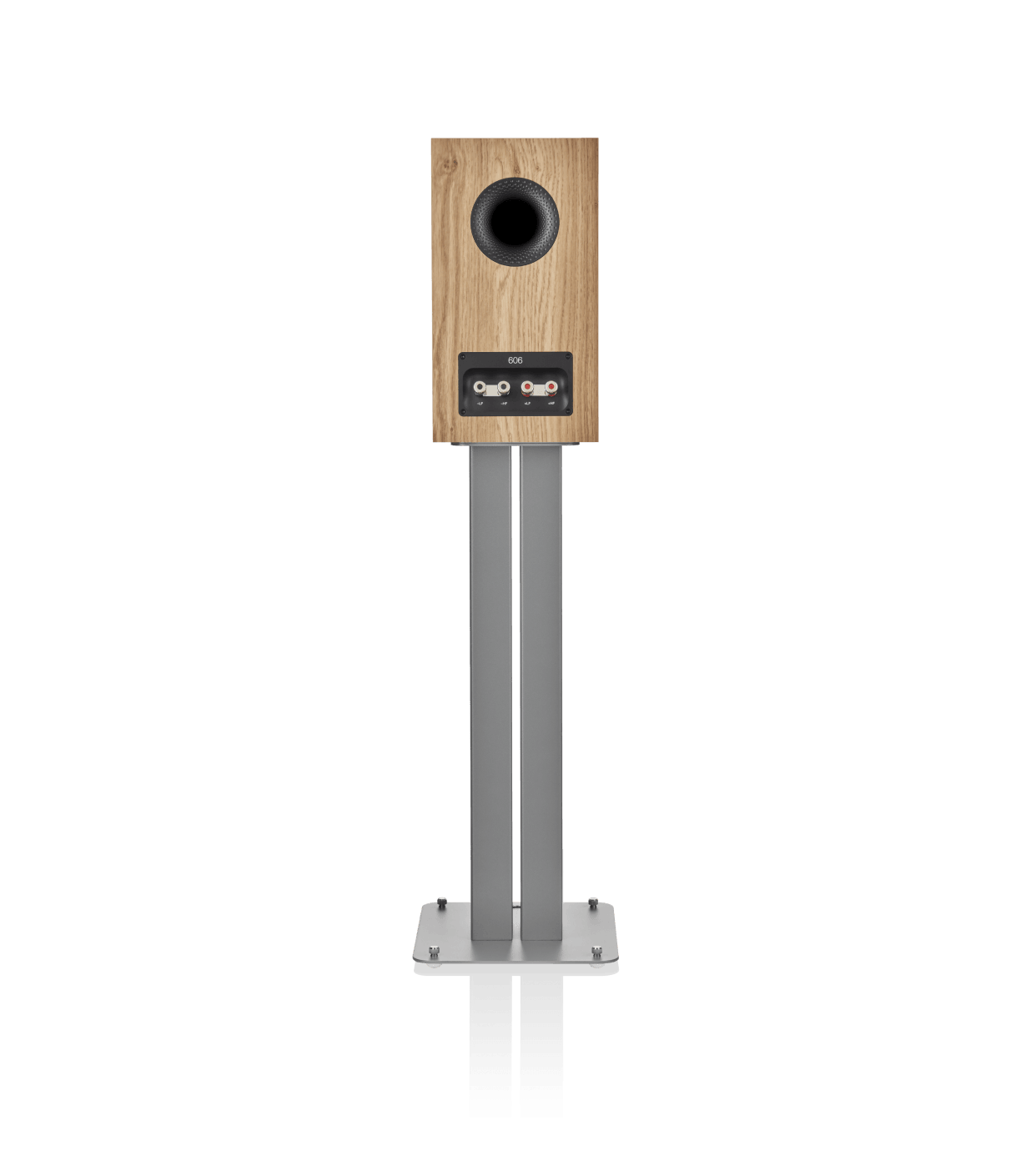

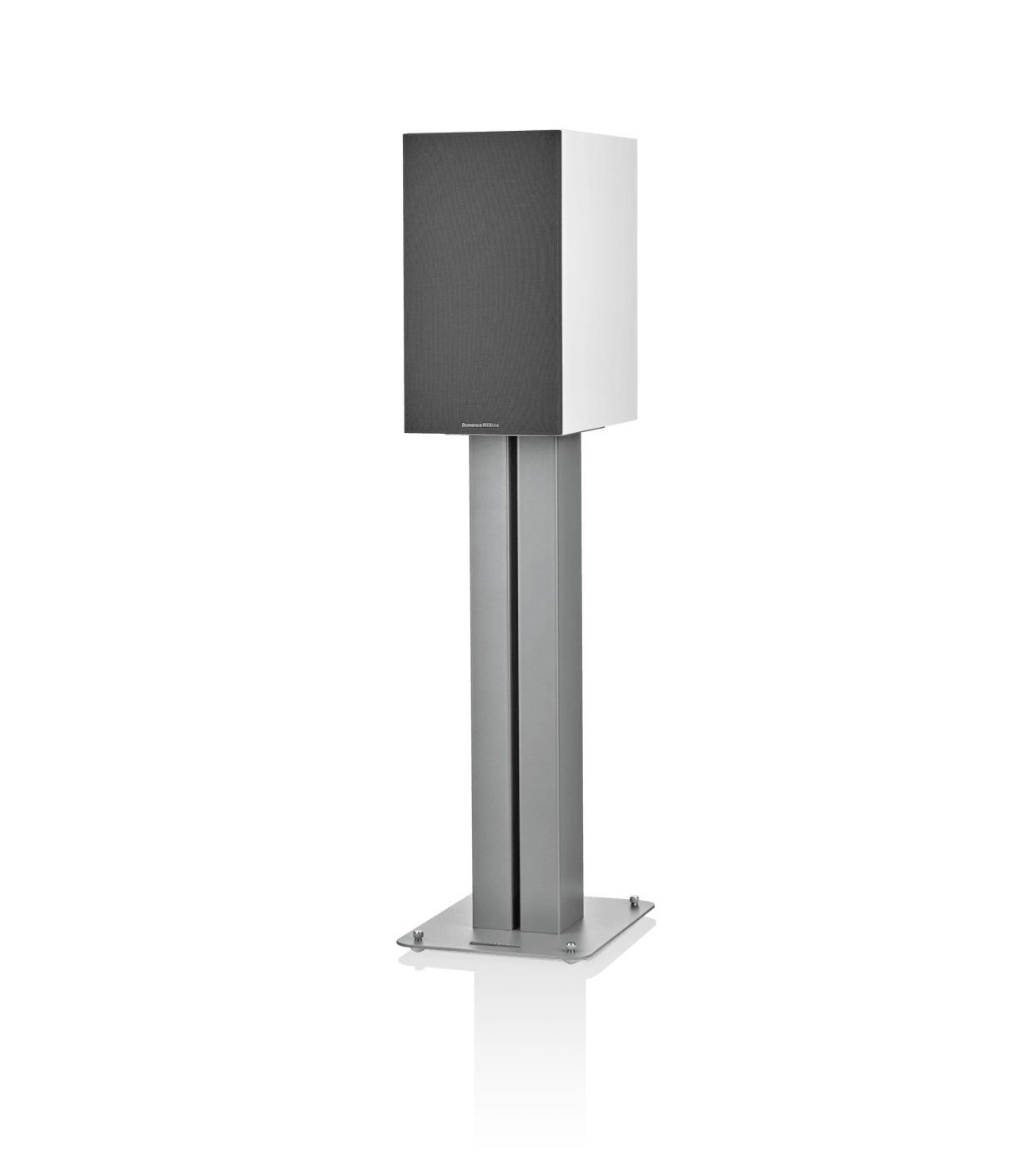

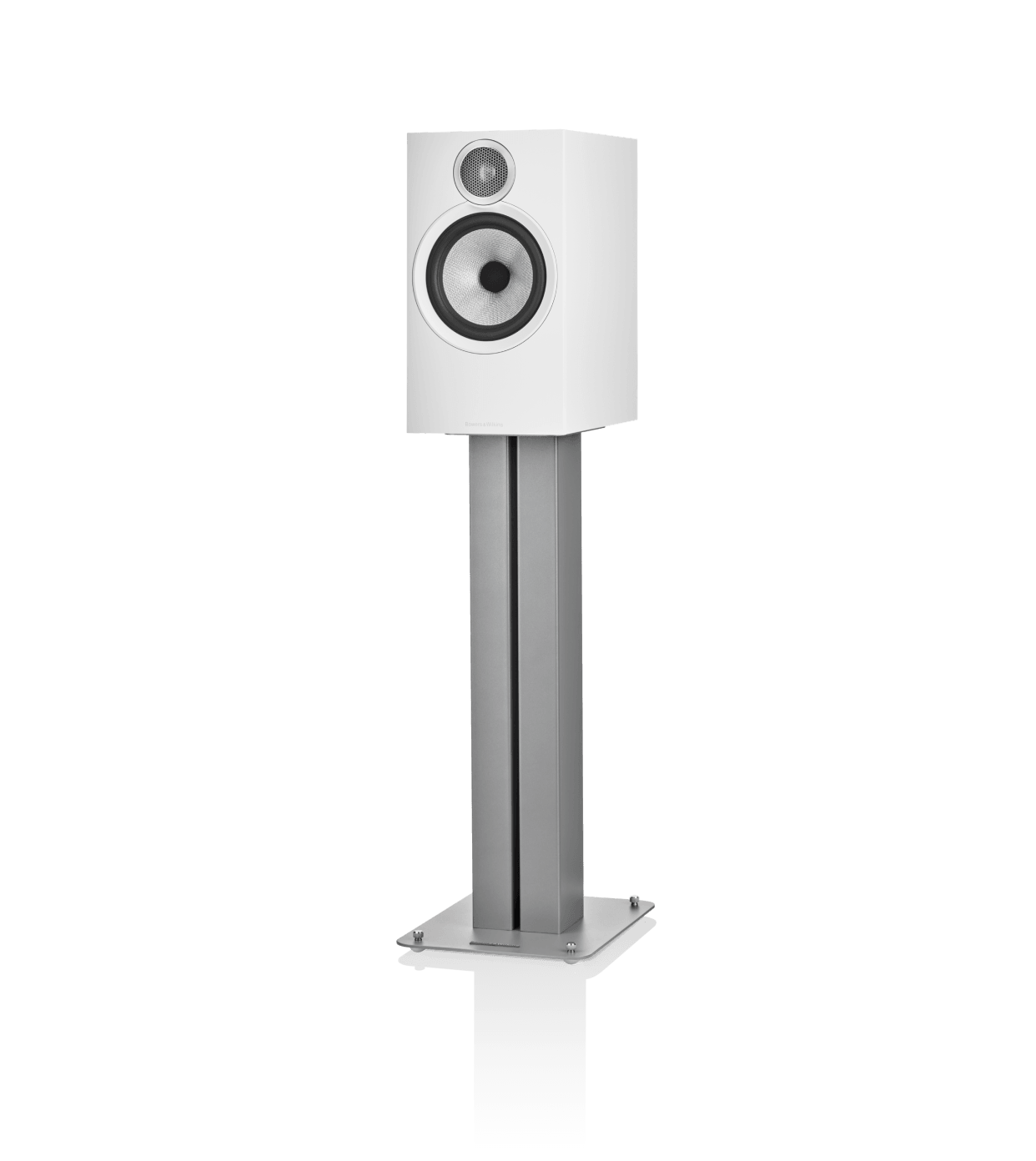

606 S3 introduces our new and even more acoustically transparent tweeter grille mesh, first developed for our revered Signature models. Alongside the new Titanium Dome tweeter, the resolution and realism are exceptional. Thanks to its composite construction, the Continuum cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. With 606 S3, experience a more open, neutral performance that delivers voices and instruments with precision and transparency. Derived from the speaker terminals recently introduced in our 700 Series range, the speaker terminals on the new 606 S3 feature an improved layout and a cleaner signal path between your amplifier and your loudspeakers. The essential loudspeakers for music lovers.
Specifications
Size & weight
Dimensions-
Height: 344mm (13.6 in) cabinet only
Width: 189mm (7.4 in) cabinet only
Depth: 300mm (11.8 in) cabinet only
328mm (12.9 in) including grille and terminals
Net weight-
7.05kg (15.5 lb)
Technical details
Technicals features-
Decoupled Double Dome Titanium tweeter
Continuum cone bass/midrange
Flowport
Frequency response (+/-3dB from reference axis)-
52Hz-28kHz ±3dB
Description-
2-way vented-box system
Drive units-
1x ø25mm (1 in) Titanium Dome high-frequency
1x ø165mm (6.5 in) Continuum cone bass/midrange
Frequency range-
-6dB 40Hz-33kHz
Sensitivity (on axis at 2.83Vrms at 1m)-
88dB
Harmonic distortion-
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz-22kHz
<0.5% 150Hz-12kHz
Nominal impedance-
8 Ω (minimum 3.7 Ω)
Recommended amplifier power-
30W-120W into 8 Ω on an unclipped program
Max recommended cable impedance-
0.1 Ω
